youth off-road vehicles
- colorred,blue.black
MX196-2 Features
1 split front forks
2 single girder 38 tube
3 long single support never scratch ground when turning
4 stylish and comfortable seat
5 with left and right side cover, protect against scalds
6 front mounted foot pedal

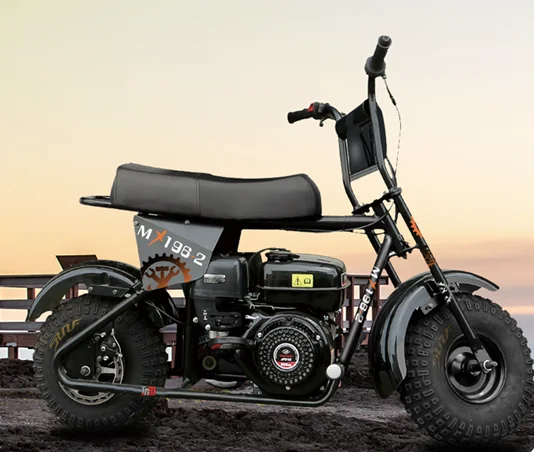

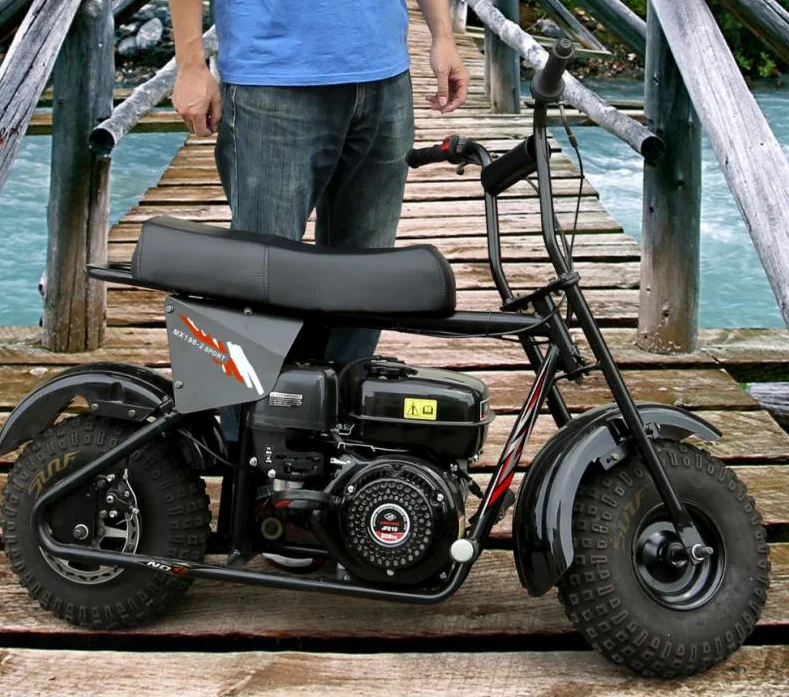

| MX196-2 mini offroad motorcycle | |
| model | MX196-2 |
| general information | |
| length | 1300mm |
| width | 670mm |
| height | 940mm |
| wheelbase | 930mm |
| seat hight | 660mm |
| minium ground clearance | 110mm |
| max speed | 45KM/H |
| engine information | |
| model | JF200 |
| type | four stroke |
| cylinder qty | single cyclinder |
| cooling mode | forced air cooling |
| displacement | 196cc |
| bore | 68 |
| stroke | 54 |
| compression ratio | 8.5:1 |
| fuel supply mode | fuel tank switch direct |
| carburetor type | P19 |
| power | 3.68KW 7.48HP |
| torque | 11.2N.m/2800 |
| ignition mode | Transistor contactless ignition |
| starting mode | hand pull start |
| spark plug model | F7RTC |
| spark plug clearance | 0.7-0.8mm |
| crankcase lubricating oil | SAE 10W/40 |
| fuel type | gasoline,≥92 |
| fuel tank capacity | 3.6L |
| transmission | CVT |
| other information | |
| clutch | auto clutch |
| front wheel type | 145/70-6 |
| rear wheel type | 145/70-6 |
| brake mode | mechanical disk brake |
| driven mode | rear wheel |
| tire pressure | 80-100kpa |
| climb ability | 15° |
| net weight | 48.5Kg |
| gross weight | 66.5Kg |
| max load | 95Kg |
| container loading qty | 224 unit |
| packing size | 1150*425*660mm |
1. Q May I get some samples?
A: We are honored to offer you samples for quality and performance confirming.
2. Q: Do you have the products ready for shipment ?
A: No. All vehicles are to be produced according to your order..
3. Q: how long is the delivery time?
A:normally 25 working days to produce an order from MOQ to 40HQ container..
4. Q: is it possible to mix different models in one container?
A: Yes, different models can be mixed in one container.
5. Q: How does your factory do regarding quality control?
A: we start quality control from beginning to end of production .first parts inspection ,then assemble checking , and final adjusting and testing., each products will be carefully checked . we are manufacture and we have final responsible for our products quality .
