small quad snowmobile
- colorwhite,blue, red,camo,gray
Utility snow mobile - working partner in white winter
Overview
Supply Ability
Packaging & Delivery
SNOWMOBILE TBM1450-14snow thrower

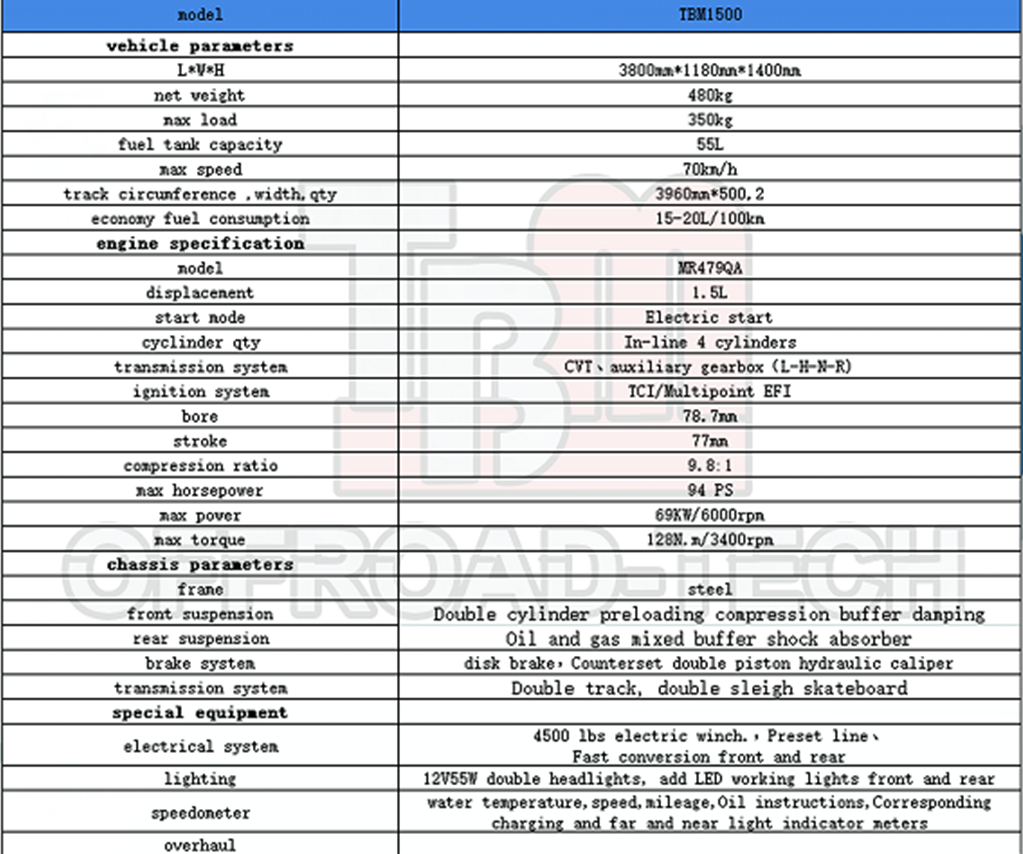

snowmobile specification | |
model | TBM1500 |
vehicle parameters | |
L*W*H | 3800mm*1180mm*1400mm |
net weight | 480kg |
max load | 350kg |
fuel tank capacity | 55L |
max speed | 70km/h |
track circumference ,width,qty | 3960mm*500,2 |
economy fuel consumption | 15-20L/100km |
engine specification | |
model | MR479QA |
displacement | 1.5L |
start mode | Electric start |
cyclinder qty | In-line 4 cylinders |
transmission system | CVT,auxiliary gearbox(L-H-N-R) |
ignition system | TCI/Multipoint EFI |
bore | 78.7mm |
stroke | 77mm |
compression ratio | 9.8:1 |
max horsepower | 94 PS |
max power | 69KW/6000rpm |
max torque | 128N.m/3400rpm |
chassis parameters | |
frame | steel |
front suspension | Double cylinder preloading compression buffer damping |
rear suspension | Oil and gas mixed buffer shock absorber |
brake system | disk brake,Counterset double piston hydraulic caliper |
transmission system | Double track, double sleigh skateboard |
special equipment | |
electrical system | 4500 lbs electric winch.,Preset line, Fast conversion front and rear |
lighting | 12V55W double headlights, add LED working lights front and rear |
speedometer | water temperature,speed,mileage,Oil instructions,Corresponding charging and far and near light indicator meters |
overhaul |
1. Q May I get some samples?
A: We are honored to offer you samples for quality and performance confirming.
2. Q: Do you have the products ready for shipment?
A: No. All vehicles are to be produced according to your order.
3. Q: How long is the delivery time?
A: Normally 25 working days to produce an order from MOQ to 40HQ container.
4. Q: Is it possible to mix different models in one container?
A: Yes, different models can be mixed in one container.
5. Q: How does your factory do regarding quality control?
A: We start quality control from beginning to end of production. First parts inspection, then assemble checking, and final adjusting and testing, each products will be carefully checked. We are manufacture and we have final responsible for our products quality.
