MID size go kart BLAZER 200 200R blazer 80
- colorred,green,blue,PINK
| TRAILMASTER BLAZER 200 WITH REVERSE | |
| TRAILMASTER BLAZER 200R WITH OUT REVERSE | |

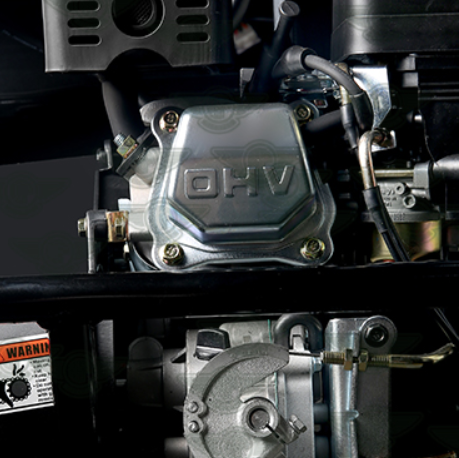

| Engine type | 4-stroke, single cylinder, air cooled |
| Displacement | 196cc |
| Max HP | 6.3hp/3600rpm |
| Max torque | 9.6 lb ft/2500rpm |
| Bore x stroke | 2.6 x 2.1 inches |
| Max speed | 31mph |
| Climbing ability | 12 degrees |
| Ignition | C.D.I |
| Starting system | Electric Start with Pull Start backup |
| Battery | 12V 9Ah |
| Engine oil | SG15W-40 |
| reverse | yes |
| Clutch | Automatic CTV |
| Driveline / Driving wheel | Chain / Dual wheel drive |
| Suspension, F / R | Double A-arm / swing-arm / Double Oil Damped Shock |
| Brake | Hydraulic Disc brake |
| Tires, F / R | 16x6-8 / 16x7-8 |
| Fuel capacity | 1 gal |
| Weight, G.W. / N.W. | 386 /330 lbs |
| Max load | 400 lbs |
| Wheelbase | 48.4 inches |
| L x W x H | 67 x 43.3 x 51.2 inches |
| Height to seat | 10.2 inches |
| Min ground clearance | 2.8 inches |
| Pedal to seat back distance | 31.5 + 40.5 inches" |
| Notes | "EPA certificated |
| ENGINE: | 4-STROKE, SINGLE CYLINDER, AIR COOLED |
| TANK VOLUMN: | 1 GAL (3.785l) |
| BATTERY: | 12V 9AH |
| TRANSMISSION: | AUTOMATIC CTV |
| FRAME MATERIAL: | IRON |
| FINAL DRIVE: | CHAIN / DUAL WHEEL DRIVE |
| WHEELS: | 145X70-6 / 145X70-6 |
| FRONT&REAR BRAKE SYSTEM: | NO / HYDRAULIC/ BRAKE DISC |
| FRONT&REAR SUSPENSION: | DUAL A-ARM / DOUBLE OIL DAMPED SHOCK |
| FRONT LIGHT: | Y |
| REAR LIGHT: | N |
| DISPLAY: | N |
| OPTIONAL: | N |
| MAX SPEED: | 31MPH (49.89KM/H) |
| MAX LOAD CAPACITY: | 400 LBS (182KG) |
| SEAT HEIGHT: | 10.2 INCHES (25.91CM) |
| WHEELBASE: | 48.4 INCHES (1.23M) |
| MIN GROUND CLEARANCE: | 2.8 INCHES (7.11CM) |
| BIKE SIZE: | 5835X36X43 INCHES (1.70X1.10X1.30M) |
| PACKING SIZE: | 1800*1100*660 |
| QTY/CONTAINER 20FT/40HQ: | 52UNITS / 40HQ |
| Features: | |
| Blazer 200R is the perfect mid-size kart with the new stylish design | |
| 6.5 H.P 200cc ENGINE WITH ELECTRIC START AND RECOIL BACKUP FULLY AUTOMATIC | |
| Heavy Duty Frame | |
| TRANSMISSION CVT DRIVE SYSTEM WITH REVERSE | |
| FRONT AND REAR HYDRAULIC DISC BRAKES | |

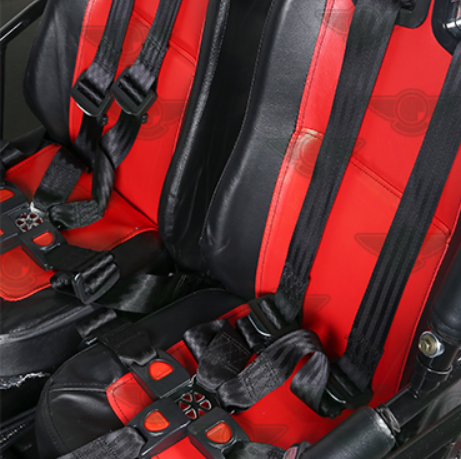

| FULL DUAL SAFETY HARNESSES | |

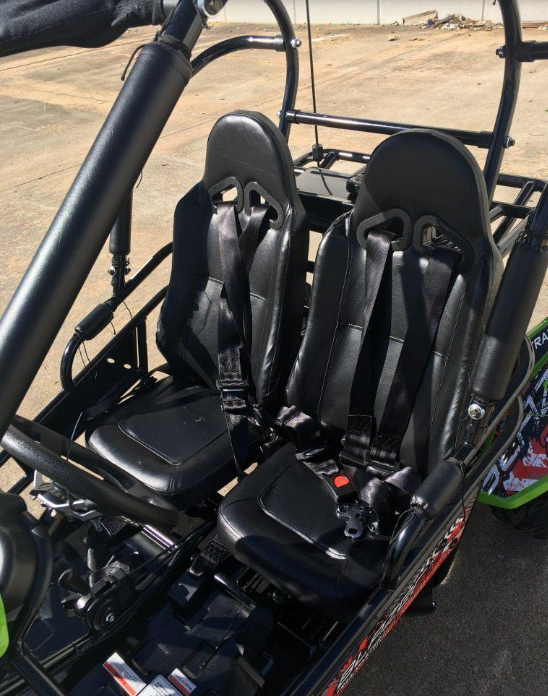

| ADJUSTABLE SLIDE SEATS | |
| DOUBLE A-ARM | |
| FRONT SUSPENSION FULL TRAVEL SHOCKS | |
| FLOOR SHIFTER INTERGRATED | |
| RACK LED HEADLIGHT | |
