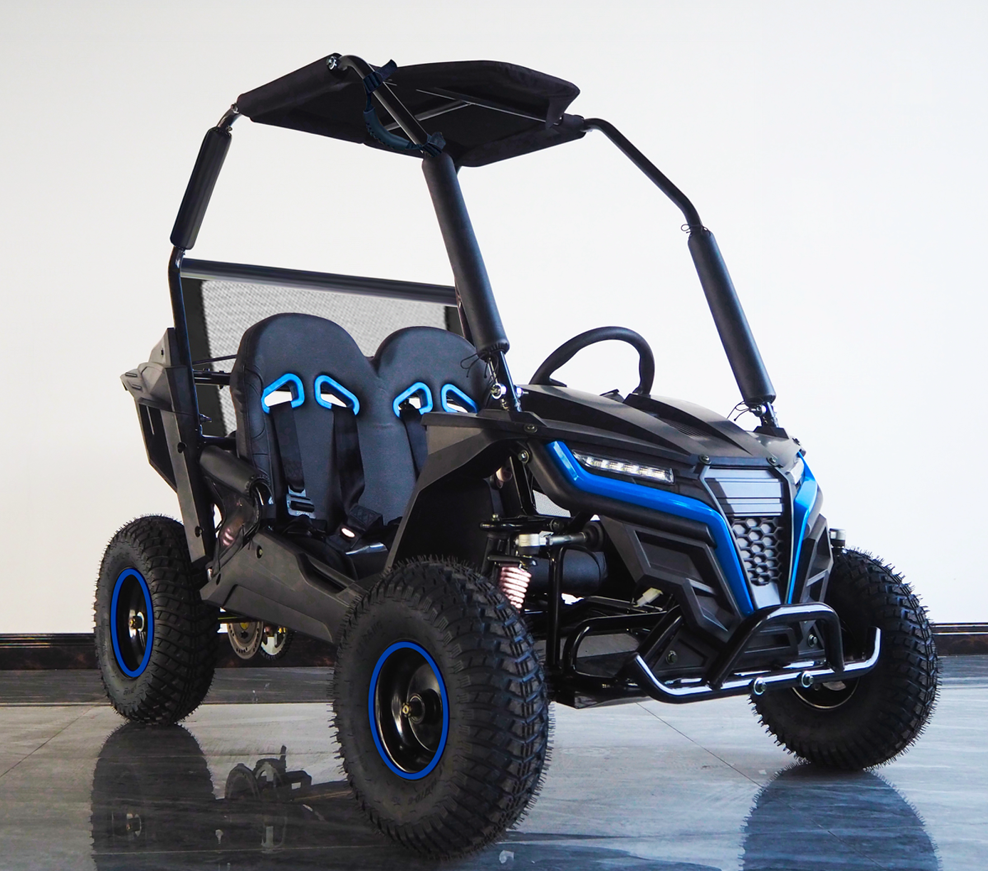

KID go kart buggy k1 R1 with reverse
- colorred,green,blue,yellow,orange pink
| ENGINE INFORMATION: | |
| EPA certificated EPA USA / CANADA MARKET CE APPROVED FOR EUROPEAN MARKET | |
| Engine type | JF168,4-STROKE,SINGLE CYLINDER,AIR COOLED JF168 , |
| Displacement | 163 CC |
| Output Max. | 3.2KW/360RPM |
| Max torque | 10.8NM/2800RPM |
| Bore x stroke | 68*45 |
| Max speed | 35KM/H |
| Climbing ability | 12° |
| Ignition | TCITransistor Contactless Ignition TCI |
| Starting system | ELECTRIC START OR PULL START |
| Battery | YTX12-BS 12V10AH |
| Carburetor Item | P19 |
| Engine oil | SAE 10W/40 |
| General Information | |
| Clutch | AUTOMATIC CVT |
| Gears | D--R |
| Driveline / Driving wheel | CHAIN / DUAL WHEEL DRIVE |
| Suspension, F / R |
DUAL A-ARM / THRU-SHAFT WITH DUAL SHOCKS ARM |
| Brakes, F / R | DISC |
| Tires, F / R | 145/70-6 / 16*6-8 |
| Fuel capacity | 0.99 GAL (3.6L） |
| Weight, G.W. / N.W. |
140 KGS/ 120 KGS |
| Max load | 180 LBS (81) KGS |
| Dimension Information | |
| Wheelbase | 1110 MM |
| OA L x W x H | 1590*910*1250 MM |
| Height to seat | 360 MM |
| Min. ground clearance | 90 MM |
| Pedal to seat back |
710-810 MM |
| Shipping information |
115UNITS / 40HQ CONTAINER , 44 UNITS /20 GP CONTAINER |
| package size | 1500*800*530 MM |
| front wheel distance | 835mm |
| rear wheel distance | 690mm |
Packaging Details
Iron Frame and Carton for go cart
double seat, full suspension Go Kart powered by a 163cc, 5.5 hp Engine and features 2-wheel drive and centrifugal clutch.
1. Q May I get some samples?
A: We are honored to offer you samples for quality and performance confirming.
2. Q: Do you have the products ready for shipment ?
A: No. All vehicles are to be produced according to your order..
3. Q: how long is the delivery time?
A:normally 25 working days to produce an order from MOQ to 40HQ container..
4. Q: is it possible to mix different models in one container?
A: Yes, different models can be mixed in one container.
5. Q: How does your factory do regarding quality control?
A: we start quality control from beginning to end of production .first parts inspection ,then assemble checking , and final adjusting and testing., each products will be carefully checked . we are manufacture and we have final responsible for our products quality .
contacting as following:
email: gokartmanufacture@vip.163.com
wechat: anne18964603431 add me and i will give you more pictures and vedios
whatsapp: 86-18912278968 add me and i will give you more pictures and vedios
cell:86-18917382985 13611981879
facebook.com/annessa.lee.927 personal page
facebook.com/TBMGOKART public page
looking forward to hearing from you
and i will give you the price according to your interested .
