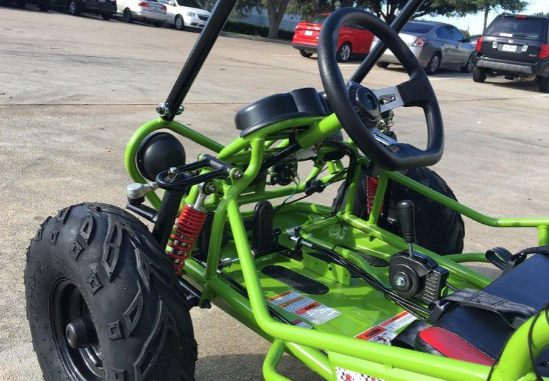

KID MINI size go kart GKXRXR
- colorred,green,blue,PINK
| Engine Information | |
| Engine type | 4-stroke, single cylinder, air cooled |
| Displacement | 163cc |
| Bore x stroke | 2.6 x 1.8 inches |
| Carburetor brand | JF |
| Max torque | 8 lb ft/3600rpm |
| Output Max. | 5.5HP/3600rpm |
| Max speed | 12.4mph |
| Ignition | C.D.I |
| Starting system | Electric/Pull backup |
| General Information | |
| OA L x W x H | 58.5x36x43 inches |
| Wheelbase | 41.7 inches |
| Min. ground clearance | 3.9 inches |
| Weight,N.W. | 176 lbs |
| Max load | 400 lbs |
| Fuel capacity | 1.2 gal |
| Climbing ability | 12 degrees |
| Vehicle chassis | |
| Driveline/Driving wheel | Chain/Dual wheel drive |
| Suspension,F/R | Dual A-arm/Double Oil Damped Shock |
| Brakes,F/R | No/Hydraulic brake Disc |

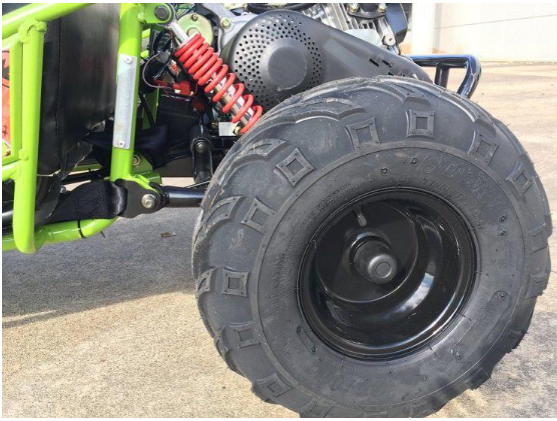

| Tires,F/R | 4.10-6/13x5-6 |
| Clutch | Automatic CVT |
| ENGINE: | 4-STROKE, SINGLE CYLINDER, AIR COOLED |
| TANK VOLUMN: | 1.2 GAL (4.542l) |
| BATTERY: | 12V 9AH |
| TRANSMISSION: | AUTOMATIC |
| FRAME MATERIAL: | IRON |
| FINAL DRIVE: | CHAIN / DUAL WHEEL DRIVE |
| WHEELS: | 145X70-6 / 145X70-6 |
| FRONT&REAR BRAKE SYSTEM: | NO / DISC |
| FRONT&REAR SUSPENSION: | DUAL A-ARM / DOUBLE OIL DAMPED SHOCK |
| FRONT LIGHT: | Y |
| REAR LIGHT: | N |
| DISPLAY: | N |
| OPTIONAL: | N |
| MAX SPEED: | 12.4MPH (19.31KM/H) |
| MAX LOAD CAPACITY: | 400 LBS (182KG) |
| SEAT HEIGHT: | 13.6 INCHES (34.5CM) |
| WHEELBASE: | 42.6 INCHES (1.08M) |
| MIN GROUND CLEARANCE: | 4.02 INCHES (10.2CM) |
| GROSS WEIGHT: | 280 LBS (127KG) |
| NET WEIGHT: | 232 LBS (105KG) |
| BIKE SIZE: | 1.49X0.97X1.24M |
| PACKING SIZE: | 1500X800X520 |
| QTY/CONTAINER 20FT/40HQ: | 115UNITS / 40HQ |
| Main Features: | |
| BEST SELLING MODEL FOR 5-10 year old! | |
| BEST QUALITY KIDS KART WITH BIG TIRES AND LARGER FRAME! | |
| Live Axle | |
| Two-wheel Drive | |
| Electric Start w/Pull Start Back Up | |
| LED Headlight | |
| Remote Start/Kill | |
| Adjustable Sports Seat | |

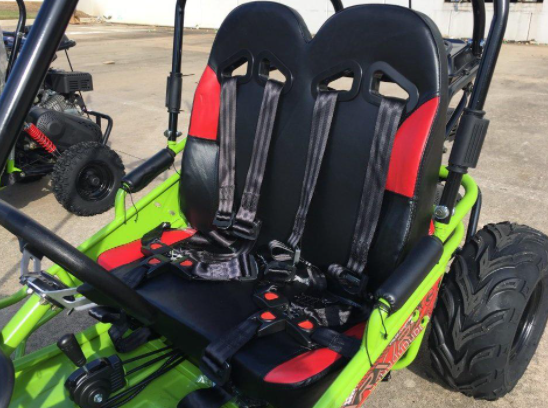

| Five Point Safety Seatbelt | |
| Adjustable Pedal | |
| Speed Governor | |
| Horn | |
Packaging Details
Iron Frame and Carton for go cart
double seat, full suspension Go Kart powered by a 163cc, 5.5 hp Engine and features 2-wheel drive and centrifugal clutch.
1. Q May I get some samples?
A: We are honored to offer you samples for quality and performance confirming.
2. Q: Do you have the products ready for shipment ?
A: No. All vehicles are to be produced according to your order..
3. Q: how long is the delivery time?
A:normally 25 working days to produce an order from MOQ to 40HQ container..
4. Q: is it possible to mix different models in one container?
A: Yes, different models can be mixed in one container.
5. Q: How does your factory do regarding quality control?
A: we start quality control from beginning to end of production .first parts inspection ,then assemble checking , and final adjusting and testing., each products will be carefully checked . we are manufacture and we have final responsible for our products quality .
